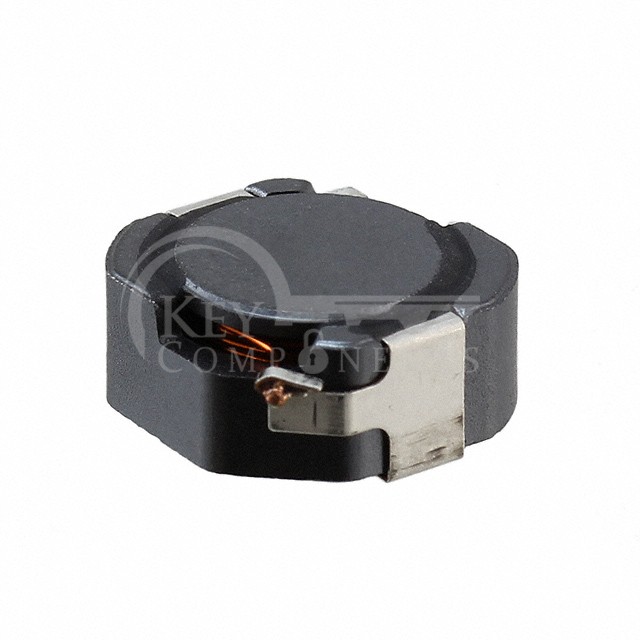

CLF12555T-6R8N-H
| Manufacturer Part | CLF12555T-6R8N-H |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 6.8UH 4.7A 15 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 6.8 µH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 4.7 A |
| Current - Saturation (Isat): | 8A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 15mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max): | 0.217" (5.50mm) |
