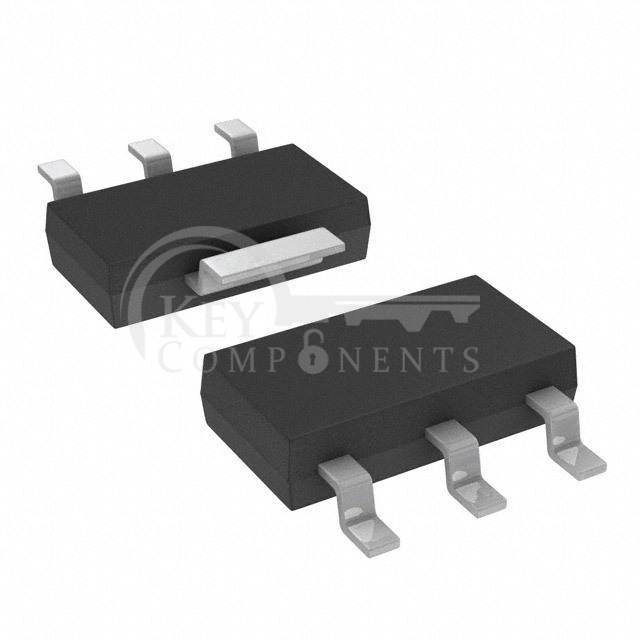

VNN1NV0413TR

VNN1NV0413TR

Manufacturer Part VNN1NV0413TR
Manufacturer STMicroelectronics
Description IC PWR DRIVER N-CHAN 1:1 SOT223
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:Low Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:36V (Max)
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):1.7A
Rds On (Typ):250mOhm (Max)
Input Type:Non-Inverting
Features:-
Fault Protection:Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-223
Package / Case:TO-261-4, TO-261AA
