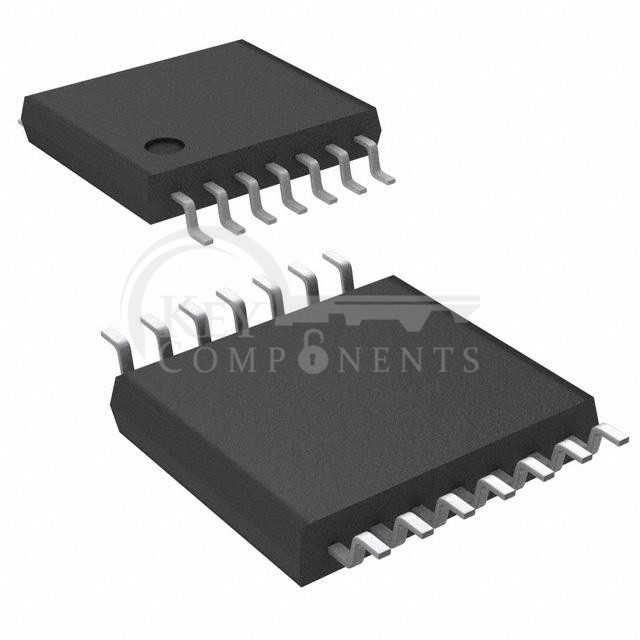

74LCX08MTC

74LCX08MTC

Manufacturer Part 74LCX08MTC
Manufacturer onsemi
Description IC GATE AND 4CH 2-INP 14TSSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Logic Type:AND Gate
Number of Circuits:4
Number of Inputs:2
Features:-
Voltage - Supply:2V ~ 3.6V
Current - Quiescent (Max):10 µA
Current - Output High, Low:24mA, 24mA
Logic Level - Low:0.7V ~ 0.8V
Logic Level - High:1.7V ~ 2V
Max Propagation Delay @ V, Max CL:5.5ns @ 3.3V, 50pF
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Supplier Device Package:14-TSSOP
Package / Case:14-TSSOP (0.173", 4.40mm Width)
