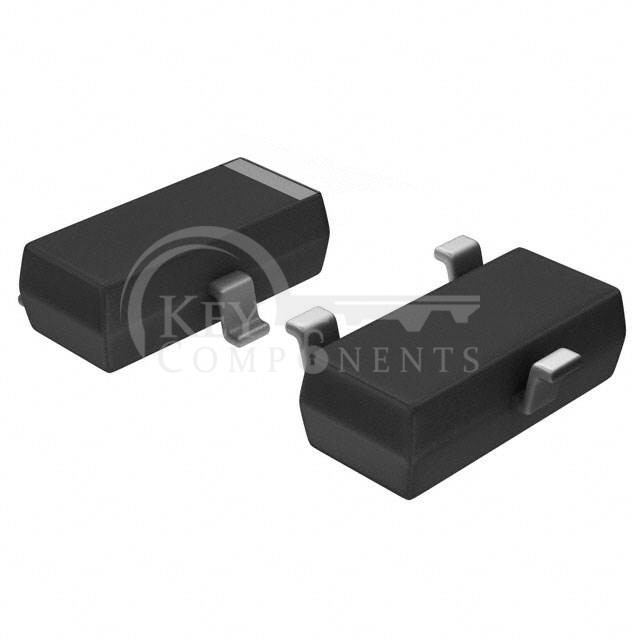

MMBZ5238B

MMBZ5238B

Manufacturer Part MMBZ5238B
Manufacturer Fairchild Semiconductor
Description DIODE ZENER 8.7V 225MW SOT23-3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Voltage - Zener (Nom) (Vz):8.7 V
Tolerance:±5%
Power - Max:225 mW
Impedance (Max) (Zzt):8 Ohms
Current - Reverse Leakage @ Vr:3 µA @ 6.5 V
Voltage - Forward (Vf) (Max) @ If:900 mV @ 10 mA
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23-3
