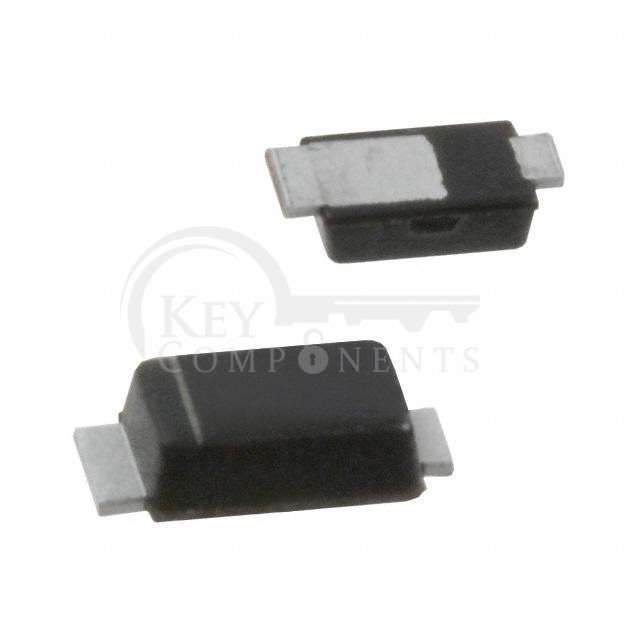

PD3Z284C20-7
| Manufacturer Part | PD3Z284C20-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | DIODE ZENER 20V 500MW POWERDI323 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 20 V |
| Tolerance: | ±6% |
| Power - Max: | 500 mW |
| Impedance (Max) (Zzt): | 20 Ohms |
| Current - Reverse Leakage @ Vr: | 100 nA @ 14 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.1 V @ 100 mA |
| Operating Temperature: | -65°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | PowerDI™ 323 |
| Supplier Device Package: | PowerDI™ 323 |
