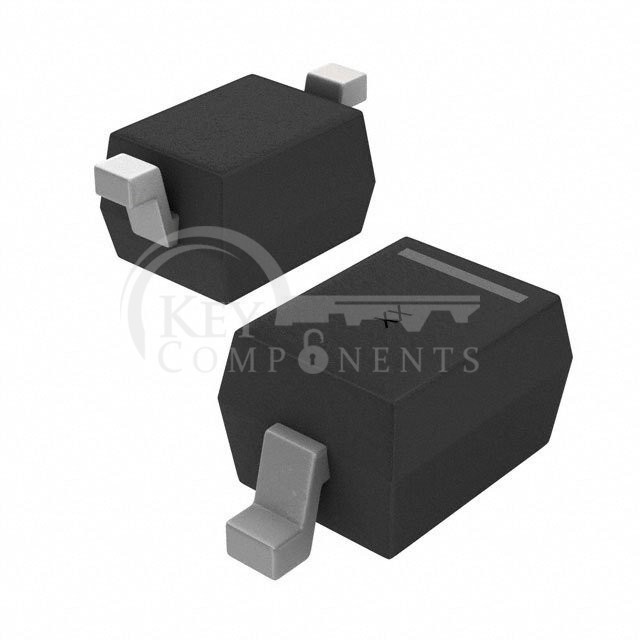

CDSOD323-T05
| Manufacturer Part | CDSOD323-T05 |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | TVS DIODE 5VWM 18.3VC SOD323 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5V |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 18.3V (Typ) |
| Current - Peak Pulse (10/1000µs): | 17A (8/20µs) |
| Power - Peak Pulse: | 350W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 3pF @ 1MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-76, SOD-323 |
| Supplier Device Package: | SOD-323 |
